HTS

Technical data/Description

Tillval

-HTS…C Tinned copper braid provide additional mechanical protection and a positive ground path.
-HTS…CT High Temperature Fluoropolymer overjacket are used for exposure to organic or corrosive solutions or vapours may be present.
Technical Data
Service voltage: 11-120V.220-277V
Max. maintain or continuous exposure temperature (power on) +120°C (248°F)
Max. intermittent exposure temperature, 1000 hours (power on or off) +200°C (392°F)
Min. installation temperature -30°C (-22°F)
Protective braid resistance < 18.2 Ω/km
Bus wire gauge 16AWG
Approvals
Features
  • Energy efficient, automatically varies its power output in response to pipe temperature changes.
  • Easy to install, can be cut to any length(up to max circuit length) required on site with no wasted cable.
  • Lower installed cost than steam tracing, less maintenance expense and less downtime.
  • No overheat or burnout even when wrapped over itself (overlapped).
  • Suitable for use in non-hazardous, hazardous and corrosive environments.
  • Värmekabelteknik power connection, splice, tee and end seal kit will reduce installation time.

Description

HTS increasing or decreasing the heat output in a self-regulating way depending on the change of the ambient temperature, so a thermostat may not necessary in some applications and it will never overheat or burnout even when wrapped over itself (overlapped). With optional outer jacket, the heating cable is resistant to watery and inorganic chemicals and protect against abrasion and impact damage. HTS is suitable for use in explosion-hazardous areas up to a maximally admissible work-piece temperature of +150℃. Värmekabelteknik provide termination, power connection, splice, tee and end seal kit will reduce installation time and require no special skills or tools.

Appliance

HTS is an industrial grade, self-regulating parallel heating cable (heating tape) to BS6351 Grade 22 that can be used for applications ranging from process heating or maintenance of temperature up to 150℃. It can be used in hazardous and non-hazardous locations, including areas where corrosives may be present.

Dimensions/Diagram

Dimensions and weight

Type Dimension
(mm)		 Min. Bending radius Weight
(kg/100m)
-HTS…C 9.2*3.6 21mm 11.2
-HTS…CR 10.2*4.6 27 14.0

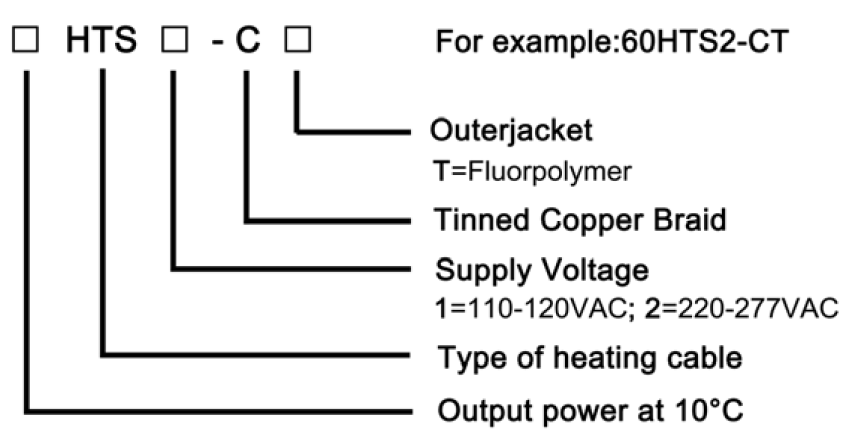

Order information

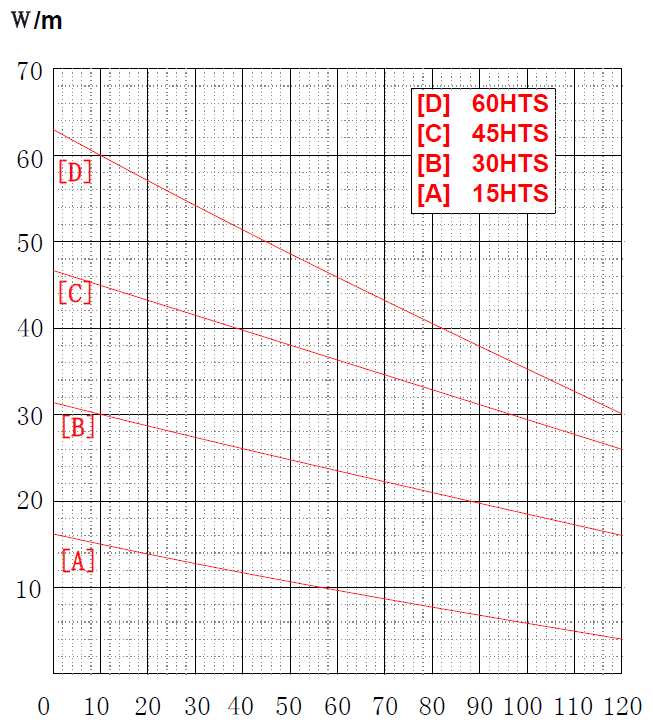

Power output curves

Nominal power output at 230V when HTS installed on insulated metal pipes.

Pipe temperature °C

Maximum length (m) vs circuit breaker

Min. start-up temperature CB size 15HTS
230V		 30HTS
230V		 45HTS
230V		 60HTS
230V
Amps ft m ft m ft m ft m
10°C (50°F) 10 240 73 146 45 100 31 77 23
16 360 109 236 72 150 46 115 35
20 479 146 295 89 200 61 150 46
30 518 158 440 134 285 87 230 70
40 531 162 510 155 380 116 306 93
0°C (32°F) 10 220 67 138 42 93 28 70 21
16 350 106 220 67 130 39 110 34
20 430 130 280 85 180 55 142 43
30 490 150 400 122 270 82 210 64
40 510 155 480 146 350 107 286 87
-20° (-4°F) 10 210 64 130 39 83 25 67 20
16 315 96 195 59 125 38 100 30
20 380 115 260 79 165 50 135 41
30 480 146 364 111 250 76 200 122
40 500 152 440 134 335 110 265 81
-40°C (-40°F) 10 180 54 116 35 80 24 63 19
16 285 87 175 53 120 36 95 29
20 360 38 235 72 160 49 125 38
30 450 108 350 107 240 73 190 58
40 480 146 460 140 320 97 250 76
